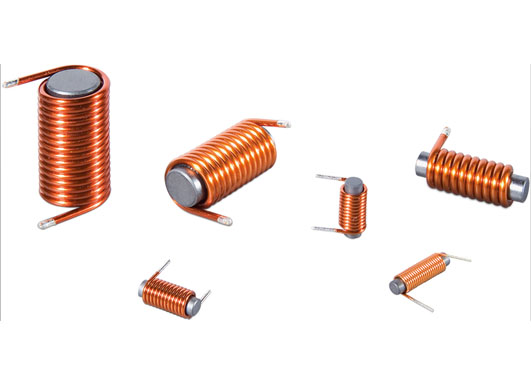

Filter Choke(Rod Core Choke)

Product Name:

Filter Choke(Rod Core Choke)

Product Description

Toroidal Magnetic Common Mode Choke Coil

TPB HV Three-Phase Common Mode Power Line Choke

power Toroidal common mode Inductors

common mode choke inductance

Common Mode Power Line Choke

common mode differential mode

Toroidal Magnetic Choke Coil

ring Inductances EMI Filters

EMC PFC Choke Coil

Power line EMI chokes

Power Inductor

High current Inductors

Through Hole Inductor

Audio HF Chokes

Ferrite Iron Core Inductor

Toroidal coils Inductor

switch power inductor

common mode core

common mode inductance

common mode line choke

Bobbin Inductor Coil

Inductor Choke Coil

Filter Inductor

Ferrite Core Inductor

Characteristics

· Rated current up to 15 A

· Inductance is independent from rated DC current

· High mechanical stability

· High saturation currents

· Operating temperature: –40 ºC to +150 ºC

· Custom designs on request

Applications

· Switching regulators

· Motors

· Power amplifiers

· Power supplies

· Broadband filtering

· Typical in VHF

Application Notes

· ANP015 Line filter – The last barrier in the switch mode power supply

· ANS004 Input Filter for MagI³C Power Modules

Rod Core Choke

Order Code	L1	IR 1	RDC 1	Download
Order Code	(µH)	(A)	(mΩ)	Download
FKS-744710203	2	2.5	11	FKS-744710203.pdf
FKS-744710205	2	5	6.5	FKS-744710205.pdf
FKS-744710210	2	10	3.8	FKS-744710210.pdf
FKS-744710215	2	15	1.7	FKS-744710215.pdf
FKS-744710603	6	2.5	22	FKS-744710603.pdf
FKS-744710605	6	5	11.7	FKS-744710605.pdf
FKS-744710610	6	10	6.5	FKS-744710610.pdf
FKS-744710615	6	15	3.5	FKS-744710615.pdf
FKS-744711003	10	2.5	33	FKS-744711003.pdf
FKS-744711005	10	5	15.1	FKS-744711005.pdf
FKS-744711010	10	10	8.8	FKS-744711010.pdf
FKS-744711015	10	15	5.7	FKS-744711015.pdf
