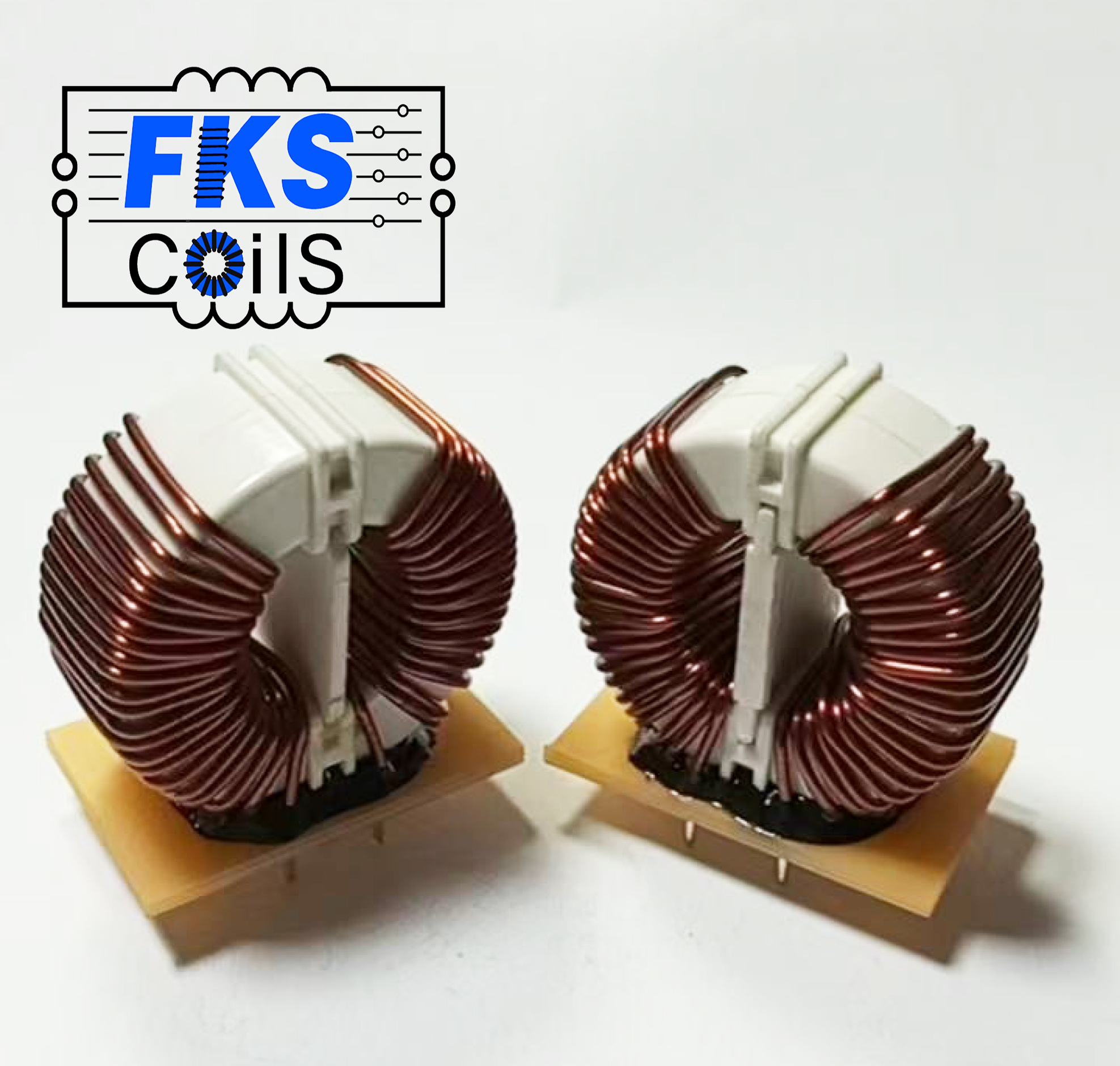

FKS-CoilS CMB HV Common Mode Power Line Choke FKS744831034090
www.fks-coils.com
Characteristics
Application up to 760 VAC
High permeability MnZn core material
Improved insulation through plastic case and winding spacer
Design according to EN 60938-2
Air and creepage distances ≥ 7 mm
Same land pattern like our CMB Series size XL and CMBNC Series XXL
Up to 22 A rated current
Up to 38 dB attenuation
Suppression frequency range: 5 kHz to 5 MHz
Operating temperature: -40 °C to +125 °C
Flammability corresponding to UL 94 V-0
Climatic category: 40/125/21
Applications
Power electronics
Power line in- and output filter
Radio interference suppression in motors
Suppression for common mode noise
